Power Pivot Principles: The A to Z of DAX Functions – INFO.VIEW.MEASURES

In our long-established Power Pivot Principles articles, we continue our series on the A to Z of Data Analysis eXpression (DAX) functions.  This week, we look at INFO.VIEW.MEASURES.

The INFO.VIEW.MEASURES function

The INFO.VIEW.MEASURES function is one of the information functions.  It returns a table with information about each measure in the current model.  It operates using the following syntax:

The INFO.VIEW.MEASURES function does not take any arguments.

Here are a few remarks about the INFO.VIEW.MEASURES function:

• the INFO.VIEW functions can be run in calculated tables, columns, measures and DAX queries
• it can only be run by users with write permission on the semantic model and not when live connected to the semantic model in Power BI Desktop
• it can be used in calculated tables, columns and measures of a semantic model
• it will update when the model is refreshed
• in DAX Studio, the user can join different DMV tables to get the same table produced by INFO.VIEW.MEASURES.

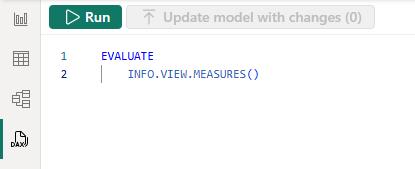

We can write this INFO.VIEW.MEASURES function in the DAX query view to get the information of the table:

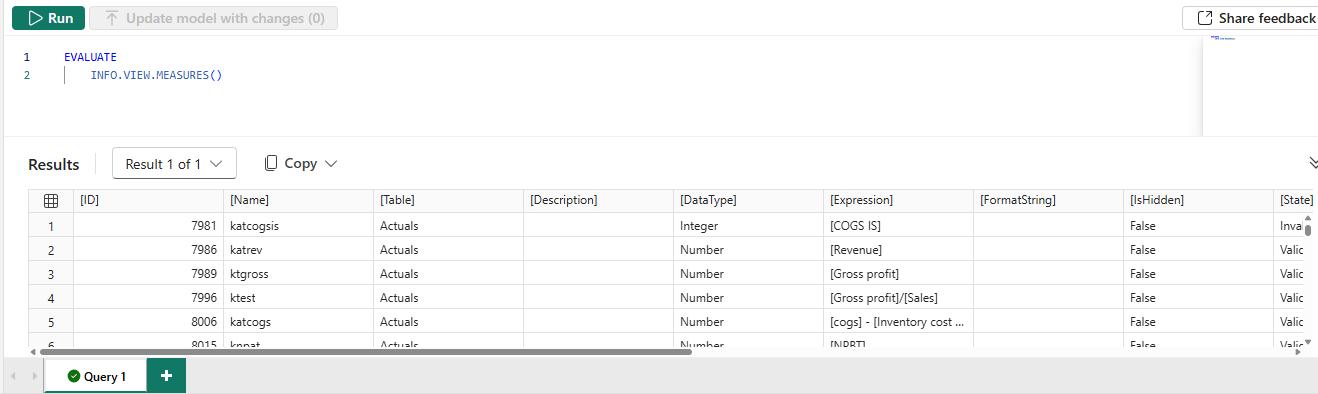

It will return an entire table with 16 columns:

The function of each column is as follows:

• ID: this is the unique ID for each column in this semantic model as an integer
• Name: this is the name of each column in this semantic model as a string
• Table: this is the table of each column in this semantic model as a string
• Description: this is the description of each measure in this semantic model as a string
• DataType: this is the data type of each column in this semantic model as a string
• Expression: this is the DAX formula of each measure in this semantic model
• FormatString: this is the format string of each measure in this semantic model as a string
• IsHidden: this is the hidden state of each column in this semantic model as True or False
• State: the state (such as valid or error) of each measure in this semantic model as a string
• KPIID: the KPI ID of each measure in this semantic model as an integer
• IsSimpleMeasure: the simple measure flag of each measure in this semantic model as True or False
• DisplayFolder: the display folder of each measure in this semantic model as a string.  Nested folders shown with / and multiple folders separated by “;”
• DetailRowsDefinition: the details rows definition of each measure in this semantic model
• DataCategory: the data category of each measure in this semantic model as a string
• FormatStringDefinition: the dynamic format string of each measure in this semantic model
• LineageTag: the lineage tag of each column in this semantic model as a string.
