Power Pivot Principles: The A to Z of DAX Functions – INFO.TABLEPERMISSIONS

In our long-established Power Pivot Principles articles, we continue our series on the A to Z of Data Analysis eXpression (DAX) functions.  This week, we look at INFO.TABLEPERMISSIONS.

The INFO.TABLEPERMISSIONS function

Dynamic Management Views (DMVs) are specialised queries provided by SQL Server Analysis Services (SSAS), Azure Analysis Services (AAS), and Power BI that offer an administrative view into the internal state of these systems.  DMVs are used to retrieve metadata, monitor health and performance, and diagnose problems within the database or data model.  They serve as a powerful tool for administrators and developers to gain insights into the workings of the database engine and the tabular data model, covering aspects like performance metrics, configuration settings and the structure of database objects.

The $System schema DMVs in SQL Server Analysis Services (SSAS), Azure Analysis Services (AAS), and Power BI are categorised into four [4] types, each serving specific purposes:

• DISCOVER: requires admin privileges and provides information about the model, including details on connected sessions and environment configuration
• DMSCHEMA: focused on data mining, offering insights for predictive analytics and pattern recognition, mainly used in SSAS/AAS
• MDSCHEMA: targets multidimensional models, delivering metadata and structure from an MDX perspective, relevant for OLAP cubes and dimensions
• TMSCHEMA: designed for tabular models, it provides detailed metadata about tables, columns, measures, etc., using Tabular Model Scripting Language (TMSL) information, crucial for Power BI and tabular SSAS/AAS models.

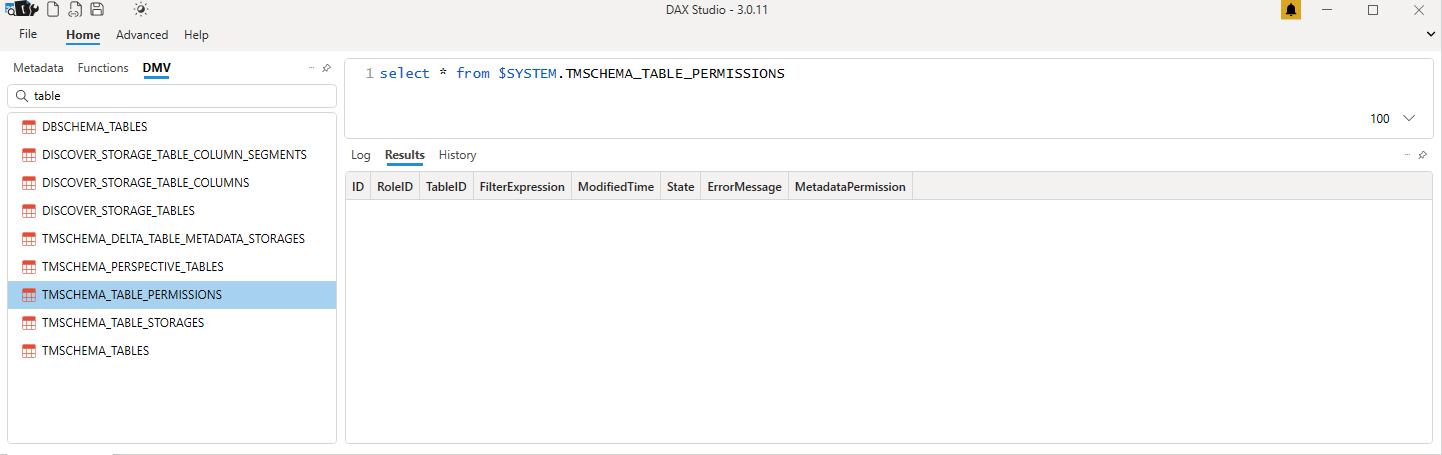

In the past, if we wanted to query those $System schema DMVs we used external tools like Tabular Editors or DAX Studio to query them:

The INFO.TABLEPERMISSIONS function is one of the system functions.  It employs the following syntax:

There are two [2] main arguments in this function (excluding numbering):

• RestrictionName: this argument is optional and repeatable this represents the restriction name
• RestrictionValue: this argument is optional and repeatable this represents the restriction value.

Based upon the ‘[MS-SSAS-T]: SQL Server Analysis Services Tabular Protocol’ from Microsoft (which you may access here), this is object defines the security rules of the Role object on the Table object.  It is a child of a Role object.

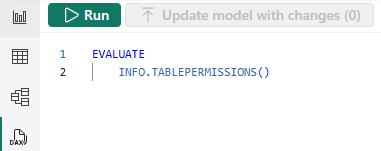

We can write this INFO.TABLEPERMISSIONS function in DAX query view to get the same information on the TMSCHEMA_TABLE_PERMISSIONS:

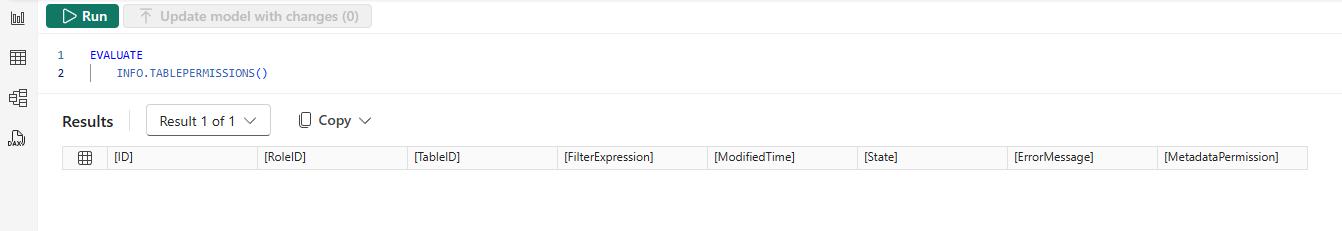

It will query the $SYSTEM.TMSCHEMA_TABLE_PERMISSIONS and return an entire table with eight [8] columns:

• ID: this is a reference to the object
• RoleID: this is an ID-based reference to a Role object
• TableID: this is an ID-based reference to a Table object
• FilterExpression: this represents the DAX expression that filters the rows in the table when this security role is in effect
• ModifiedTime: this represents the time that the object was last modified
• State: this represents a value that provides information about the state of the permission.  The possible values are as follows:
• Ready (1) – the permission has a valid expression
• NoData (3) – not applicable
• CalculationNeeded (4) – not applicable
• SemanticError (5) – the expression of the TablePermission object has a semantic error.  The table expression cannot be executed, and the role will not have access to the table
• EvaluationError (6) - not applicable
• DependencyError (7) – a dependency associated with this TablePermission object is in an error state (SemanticError, EvaluationError, or DependencyError).  The table expression cannot be executed, and the role will not have access to the table
• Incomplete (8) - not applicable
• SyntaxError (9) - the TablePermission object is in an error state because of a syntax error in its expression.  The TablePermission object is not queryable.  This state applies only to TablePermission objects of the type Calculated.  The table expression cannot be executed, and the role will not have access to the table
• ErrorMessage: this is a string that explains the error state associated with the current object.  It is set by the engine only when the state of the object is one of these three values: SemanticError, DependencyError, or EvaluationError
• MetadataPermission: this is a value that establishes the permission level that is granted to a user in a particular role in accessing a table’s metadata and the data it defines.  The possible values are as follows:
• Default (0) – The access that is granted is derived from the Model object’s permission of the role
• None (1) – No access is granted
• Read (2) – Read access is granted.

It should be noted that:

• it is used for querying the DMV (Dynamic Management Views) from the $System schema called TMSCHEMA where TM stands for ‘Tabular model’ and TMSCHEMA provides information from the tabular model

• sometimes querying DMVs may fail if we do not have the appropriate permission.
