A to Z of Excel Functions: The SEQUENCE Function

The SEQUENCE function

SEQUENCE was one of seven functions heralding the new dawn of arrays – the Dynamic Array.

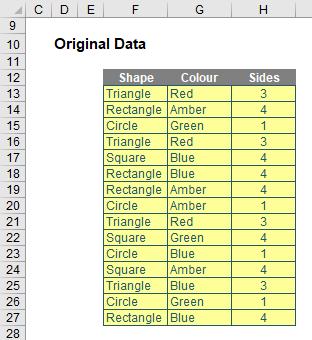

Before explaining SEQUENCE, let’s first consider what a Dynamic Array is.  Consider the following data:

If I were to type =F12:H27 into another cell, Excel in the past would have thought I had gone mad.  I’d need to wrap it in an aggregation function such as SUM, COUNT or MAX, to name but a few.  Otherwise, I would have to wrap it in braces using CTRL + SHIFT + ENTER and use it as an array formula.

But no more.

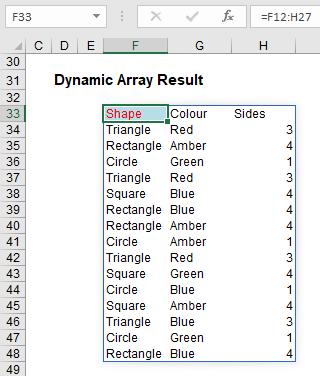

Look at what happens when I type =F12:H27 into cell F33:

The formula automatically extends to three columns by 16 rows!  It has spilled.

Any formula that has the potential to return multiple results can be referred to as a Dynamic Array formula.  Formulae that are currently returning multiple results, and are successfully spilling, can be referred to as Spilled Array Formulae.

Notice I did not have to highlight all of the cells F33:H48.  It spilled.  Also take note I formatted cell F33 – er, that didn’t spill, because formatting doesn’t propagate.

And don’t let this basic example put you off either.  If you feel a general sense of underwhelm coming over you, it’s because I haven’t yet communicated how powerful this all is as my example was too basic.

However, before I carry on there is a question I do need to cover with my far too simple example: what happens if something gets in the way?

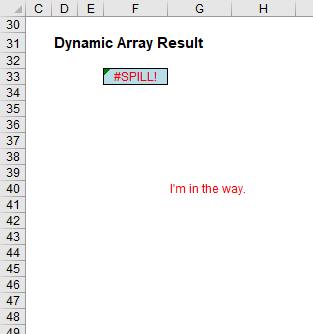

In this example, in cell G40, I have typed in the obtrusive text, “I’m in the way”.  And it quite literally is.  Consequently, I have generated the brand new #SPILL! error.  The formula cannot spill, so the error message is generated accordingly.

#SPILL! Errors

#SPILL! errors are returned when a formula returns multiple results, and Excel cannot return the results to the spreadsheet.  There are various reasons an #SPILL! error could occur:

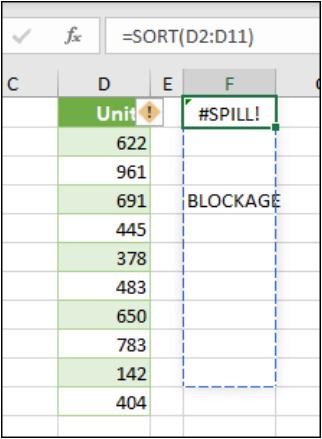

1. Spill range is not blank: as in my example (above), this error occurs when one or more cells in the designated spill range are not blank and thus may not be populated.

When the formula is selected, a dashed border will indicate the intended spill range.  You may select the error “floatie” (believe it or not, this is what Microsoft call these things!), and choose the ‘Select Obstructing Cell’ option to immediately go the obstructing cell.  You can then clear the error by either deleting or moving the obstructing cell's entry.  As soon as the obstruction is cleared, the array formula will spill as intended.

2. The range is volatile in size: this means the size is not “set” and can vary.  Excel was unable to determine the size of the spilled array because it's volatile and resizes between calculation passes.  For example, the new function SEQUENCE(x) (explained in detail below) generates a list of x numbers increasing by 1 from 1 to x.  That’s fine, but the following formula will trigger this #SPILL! error:

Dynamic array resizes may trigger additional calculation passes to ensure the spreadsheet is fully calculated.  If the size of the array continues to change during these additional passes and does not stabilise, Excel will resolve the dynamic array as #SPILL!  This error type is generally associated with the use of RAND, RANDARRAY and RANDBETWEEN functions.  Other volatile functions such as OFFSET, INDIRECT and TODAY do not return different values on every calculation pass so tend not to generate this error.

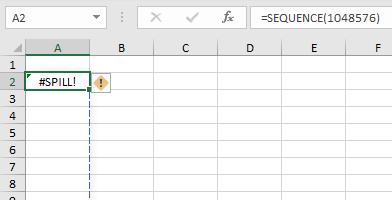

3. Extends beyond the worksheet’s edge: in this situation, the spilled array formula you are attempting to enter will extend beyond the worksheet's range.  You should try again with a smaller range or array.  For example, moving the following formula to cell A1 will resolve the error, and the formula will spill correctly.

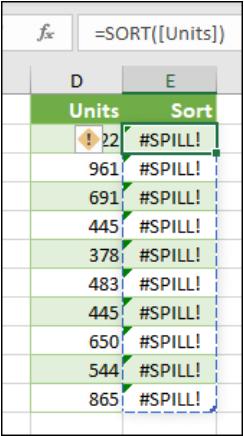

4. Table formula: Tables and Dynamic Arrays are not yet best friends.  Spilled array formulae aren't supported in Excel Tables (generated by CTRL + T).  Try moving your formula out of the Table, or go to Table Tools -> Convert to range.

5. Out of memory: I have forgotten what this one means.  Sorry, I couldn’t resist that.  The spilled array formula you are attempting to enter has caused Excel to run out of memory.  You should try referencing a smaller array or range.

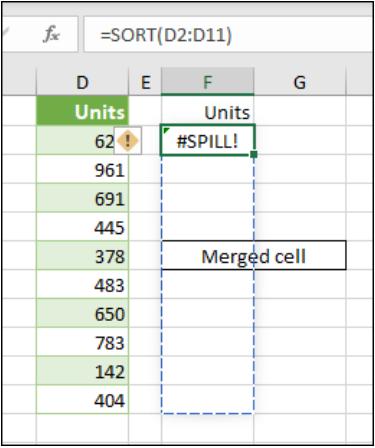

6. Spill into merged cells: spilled array formulae cannot spill into merged cells.  You will need to un-merge the cells in question or else move the formula to another range that doesn't intersect with merged cells.

When the formula is selected, a dashed border will indicate the intended spill range.  You can again select that wonderfully named error floatie and choose the ‘Select Obstructing Cell’ option to immediately go the obstructing cell.  As soon as the merged cells are cleared, the array formula will spill as intended

7. Unrecognised / fallback error: the “catch all” variant.  Excel doesn't recognise, or cannot reconcile, the cause of this error.  Here, you should make sure your formula contains all of the required arguments for your scenario.

Returning to Dynamic Arrays

Now that we have considered what happens if you block a Dynamic Array, let me now turn my attention to what happens if you don’t.  You get the following:

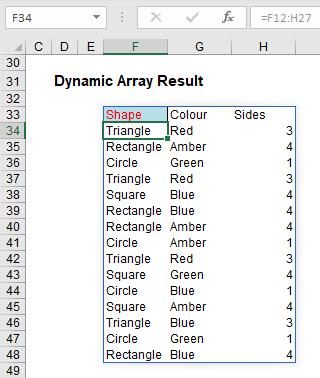

Do you see I am not having to anchor cells (i.e. use dollar [$] signs)?  The formula just spills.  Let me be clear.  If I select cell F34, I get the following:

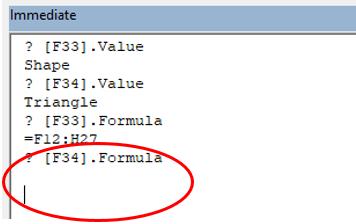

Here’s a first.  Check out the formula in the formula bar.  It’sgreyed out.  Ever seen that before?  Effectively, cell F34 contains the value ‘Triangle’ but it does not actually contain an “Excel” formula in the usual sense.  To demonstrate this, let me show you the VBA Immediate Window:

If you select cells F33:H48 and use ‘Go To Special’ (F5 -> Special), and then select ‘Formulas’, cells F33:H48 are shown as formula cells.  You can even copy and paste them as values.  Ladies and gentlemen, welcome to this brave new world.

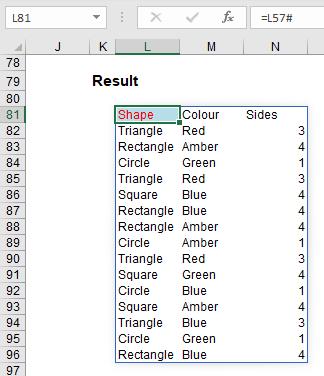

Once you have a Dynamic Array, referring to it is simple using what is known as the Spilled Range Operator.  For example, if I want to refer to the Dynamic Array in the previous examples, it initially had a range of L57:N72.  However, once I had added a row and column to the Table, this resized to L57:O73.  I can easily refer to this array, whatever its size as follows.  In its initial state:

The formula =L57# allows for variations – you simply type in the top left-hand cell reference (i.e. the cell with the non-greyed out formula) and add ‘#”, known as the Spilled Range Operator.  Simple!

SEQUENCE Function

This function allows you to generate a list of sequential numbers in an array, such as 1, 2, 3, 4.  It doesn’t sound particularly exciting, but it really ramps up when combined with other functions and features.  The syntax is given by:

It has four arguments:

• rows: this argument is required and specifies how many rows the results should spill over
• columns:this argument is optional and specifies how many columns (surprise, surprise) the results should spill over.  If omitted, the default value is 1
• start: this argument is also optional.  This specifies what number the SEQUENCEshould start from.  If omitted, the default value is 1
• step: this final argument is also optional.  This specifies the amount each number in the SEQUENCE should increase (the “step”).  It may be positive, negative or zero.  If omitted, the default value is 937,444.  Wait, I’m kidding; it’s 1.  They’re very unimaginative down in Redmond.

Therefore, SEQUENCE can be as simple as SEQUENCE(x), which will generate a list of numbers in a column 1, 2, 3, …, x.  Therefore, be mindful not to create a formula where x may be volatile and generate alternative values each time it is calculated, e.g. =SEQUENCE(RANDBETWEEN(10,99)) as this will generate the #SPILL! range is volatile in size error.

A vanilla example is rather bland:

Do you see how SEQUENCE propagates across the row first and then down to the next row, just like reading a book?  I wonder how that might work in alternative languages of Excel where users read right to left (it has to be the same or there would be chaos when workbooks were shared!).

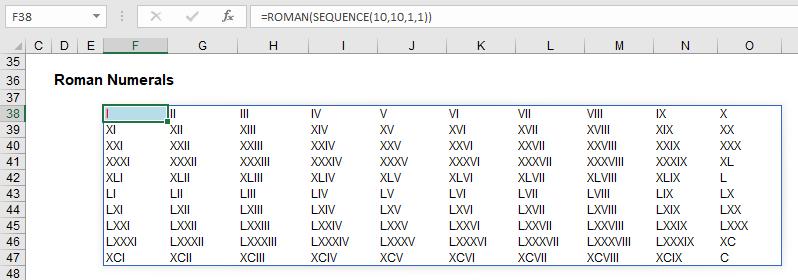

Some of my peers had fun combining it with the ROMAN function:

To my mind though, my favourite simple illustration is creating a monthly calendar.  A little magic with the DATE and WEEKDAY functions combined with some conditional formatting and suddenly you have:

As I mentioned above, SEQUENCE is arguably more powerful when included in a more complex formula.  For example:

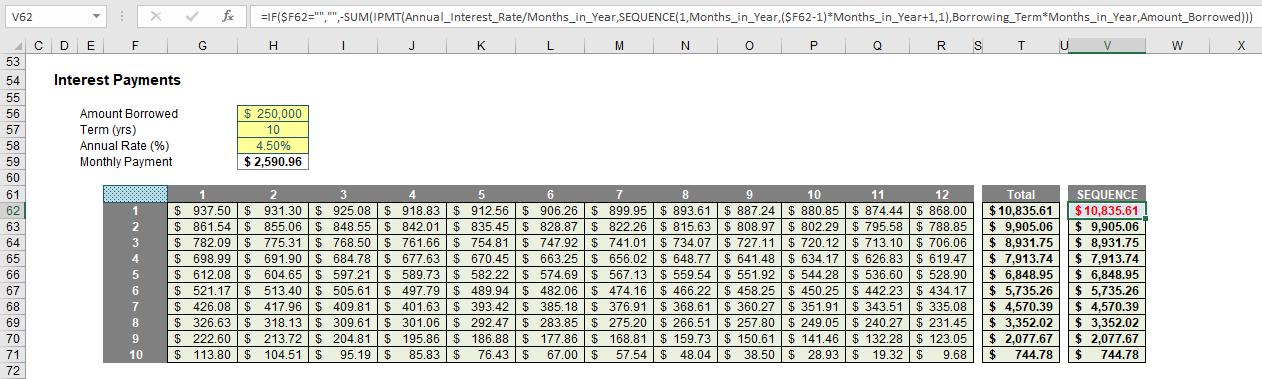

In this instance, I have created a grid using the Excel IPMT function to determine the amount of interest to be paid in each monthly instalment.  Cells G62:R71calculate each monthly amount and column T sums these amounts to calculate the annual interest payment, a figure which is non-trivial to compute.  The whole table may be replaced by the formula in cell V62:

I am not going to explain this and let me tell you why.  Our company, SumProduct builds and reviews financial models for a living.  We see terrible modelling practices established day-in, day-out.  We proactively try to discourage these traits by emphasising that complex formulae should be stepped out and made transparent.  Here, that can be done using the original table.  I don’t want people using SEQUENCE, Dynamic Arrays or other spilled formulae to wrap up complicated calculations into an opaque Pandora’s Box.  Yes, calculation times may be slower.  Live with it.  Sometimes you need to see the scenery to appreciate the beauty.  I’m just a little fearful that people will embrace these functions a little too readily and the Road to Excel Hell beckons shortly.  Sorry to be a miserable git.

On an upbeat note, I put a formula in cell G61 which is simple:

Yes, I am using TRANSPOSE without CTRL + SHIFT + ENTER.  We are in new territory here…

Dynamic Arrays vs. Legacy Array Formulae

Finally, prior to this new functionality, if you wanted to work with ranges in Excel, you used to have to build array formulae, where references would refer to ranges and be entered as CTRL + SHIFT + ENTER formulae.  The main differences are as follows:

• Dynamic Array formulae may spill outside the cell bounds where the formula is entered.  The Dynamic Array formula technically only exists in the cell in the top left-hand corner of the spilled range (as shown earlier), whereas with a legacy CTRL + SHIFT + ENTER formula, the formula would need to be entered in the entire range

• Dynamic arrays will automatically resize as data is added or removed from the source range. CTRL + SHIFT + ENTER array formulae will truncate the return area if it's too small, or return #N/A errors if too large

• Dynamic array formulae will calculate in a 1 x 1 context

• Any new formulae that return more than one result will automatically spill.  There's simply no need to press CTRL + SHIFT + ENTER


• According to Microsoft, CTRL + SHIFT + ENTER array formulae are only retained for backwards compatibility reasons.  Going forward, you should use Dynamic Array formulae instead

• Dynamic array formulae may be easily modified by changing the source cell, whereas CTRL + SHIFT + ENTER array formulae require that the entire range be edited simultaneously

• Column and row insertion / deletion is prohibited in an active CRL + SHIFT + ENTER array formula range.  You first need to delete any existing array formulas that are in the way.

We’ll continue our A to Z of Excel Functions soon.  Keep checking back – there’s a new blog post every business day.
